Permanent Magnet Lifter

    Principles: Permanent Magnet Lifter has strong magnetic path produced by Nd-Fe-B magnetic materials .On and off of the magnetic path is controlled by turning the manual handle.Permanent magnetic lifters have magnet as power.and its lifting power will never weaken.
    Application: In loading and unloading ,the lifter can hoist iron/steel blocks,cylinder and others onto magnetic materials for linkage or connection.It is very convenient for application in loading,unloading,and moving, permanent magnetic lifters are the most ideal lifting facility for factories ,docks,warehouses and transportation.
    Features: Lightly and ingeniously structured,easy for application,strong magnetic Attraction power and safe in handling.

Permanent Magnet lifter:
Modal Rated lifting
strength
(kgf)
Cylindrical lifting strength
(kgf)
Max pull-off
strength
(kgf)

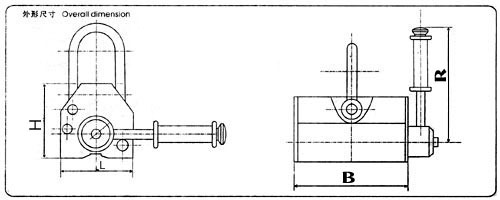

L B H R¡¡ Operation
temperature
(°C)
Dead Weight
(kg)
CML100 100 50 300 62 96 72 126 <80 3
CML300 300 150 900 95 166 107 155 <80 13
CML600 600 300 1800 116 216 117 196 <80 23
CML1000 1000 500 3000 145 266 145 285 <80 44
CML2000 2000 1000 6000 180 364 180 426 <80 63
CML3000 3000 1500 9000 224 418 243 521 <80 180
CML5000 5000 2500 15000 363 653 250 180 <80 460
